Automatic Corrugated Cardboard Line Kevlar Edge Corrugator Belt

Product Categories

CHINA YIKE GROUP CO.,LTD

Contact Now

Name: Automatic Corrugated Cardboard Line Kevlar Edge Corrugator Belt
Brand: YIKE GROUP
Price: 5 USD

Brand Name : YIKE GROUP

Model Number : YK-1800,2200,2500,2800

Certification : CE, ISO

Place of Origin : China

MOQ : 1set Kevlar Edge Corrugator Belt

Price : $5,000.00 /set

Payment Terms : T/T, Western Union

Supply Ability : 100,000 meters per Month

Delivery Time : 20 days after deposit

Packaging Details : Standard Packages

Condition : BHS / TCY / YIKE GROUP / JS Kevlar Edge Corrugator Belts

Type : Packaging Line, Corrugated paperboard production line

Packaging type : Standard Packing

Material : 5-layer woven fabric

Feature : Woven structure, anti-skidding

Usage : Automatic Corrugated Cardboard Line

Model : YKK, YKC Kevlar Edge Corrugator Belts

Name : Automatic Corrugated Cardboard Line Kevlar Edge Corrugator Belt

Contact Now

Automatic Corrugated Cardboard Line Kevlar Edge Corrugator Belt

Features

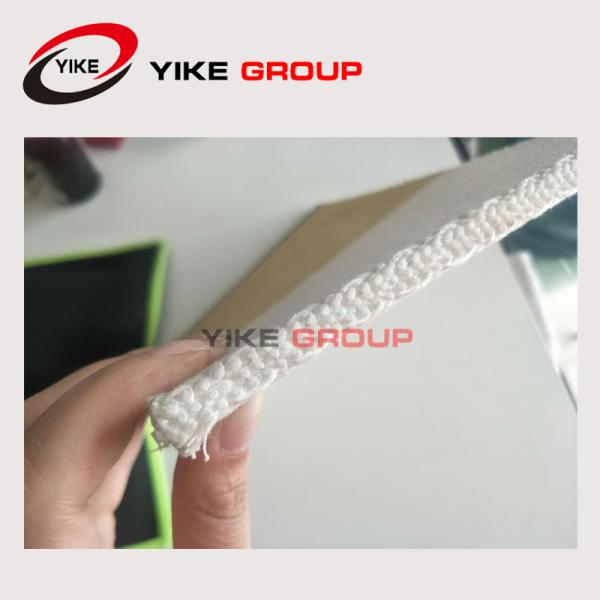

● 200mm kevlar edge

● Composition of cotton, synthetic and IFDY

● High moisture absorption and release; Low noise and high speed

● Woven structure, anti-skidding

Technical Specifications

Type	YKK-Kevlar Edge Corrugator Belts
Thickness	(9±0.30)mm
Width	(1600-2800)mm
Heat-resistance	Kevlar Edge part up to 350℃
Tensile strength	75Mpa
Coefficient of friction	≥0.4u
Weight per unit	(7.5 ± 0.3)kg/m2
Air-permeability	2.2m3/m2min.

Products Features

Tensile strength	Warp direction (63-75) Mpa in dry mode
Heat resistance	Raw materials are polyester synthetic fiber, softening point≥260ºC
Moisture absorption	Quick absorption and emission of heat, therefore cardboard can be quickly dried
Seams	The Belt seam part is fabricated with imported steel fasteners and filled with rubber, flat surface, heat- resistance, fastness, and non-marking
Suitability	Suitable for BHS, JS, TCY, CHAMPION, YIKE GROUP, FOSBER corrugators, various cardboards, and some particular operation modes.
Geometrical dimension	Steady belt dimension, high weaving density, low stretching and contraction, and good contact between belt surface and cardboard.
Service life	As long as the same products are imported abroad.

Automatic Corrugated Cardboard Line Kevlar Edge Corrugator Belt

Product Tags:

Corrugated Cardboard Line Corrugator Belt
